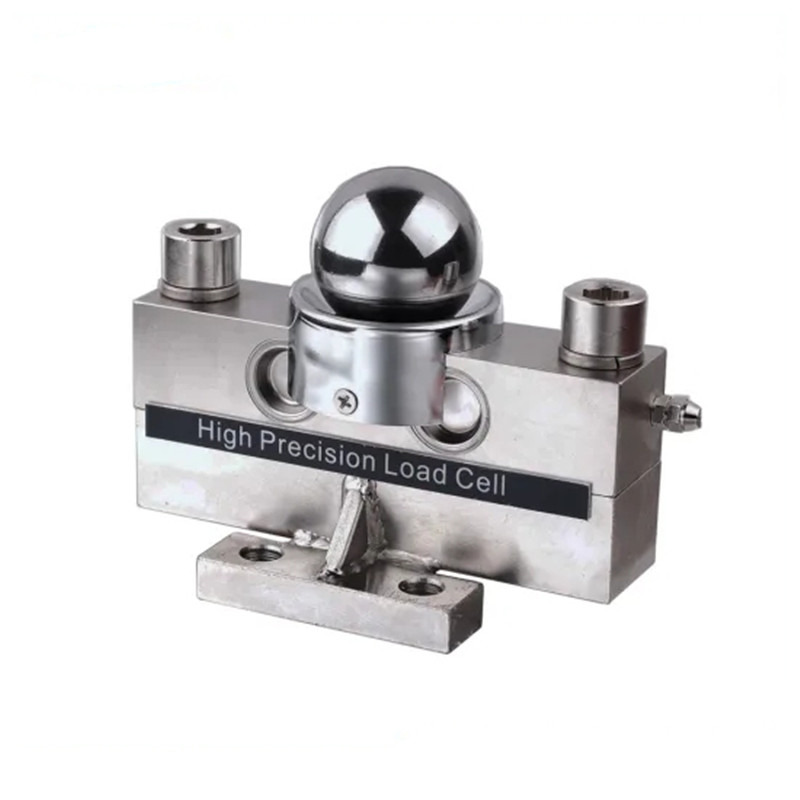

XH8250 LOAD CELL
* The bridge type load cell is also known as the double ended shear beam load cell. According to the Weston bridge principle, it combines alloy steel or stainless steel elastomer with a high precision strain gauge to produce a reliable weighing load cell. This product can be used in industrial scales (car scales, railway scales, hopper scales, etc. ) and force measuring equipment.
Application to: Weighing bridge, truck scale, weighing module, etc.
Technical parameters:
| Rated capacity | 10/15/20/25/30/40t | |
| Accuracy class | C3 | |
| Rated output | 2.0±0.002mV/V | |
| Temperature effect on zero | ±0.02%F. S/10ºC | |
| Temperature effect on sensitity | ±0.02%F. S/10ºC | |
| Creep (30 min) | ±0.02%F. S | |
| Input resistance | 760±10Ω | |
| Output resistance | 702±2Ω | |
| Operating temperature range | -30ºC ~ +70ºC | |
| Safe overload | 150%F. S | |
| Destructive load | 300%F. S | |
| Excitation recommend | 4~12V DC, max 15V DC | |
| Construction | Alloy steel | |
| Protection class | IP68 | |
| Cable length | 4 core cable standard lengths | 16m (10t ~ 40t) |
| Diameter | Ø 6 | |
| Option | Customized cable length | |
