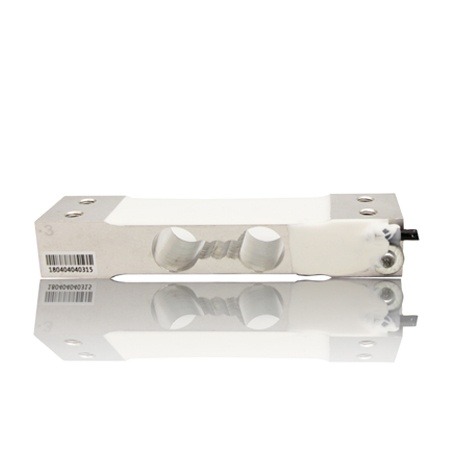

Rated Capacity | 3, 6, 10, 15, 20, 30, 40, 50kg | ||||
Accuracy class | C3 | Compensated Temp.Range | -10℃～+40℃ | ||
Comprehensive error | 0.02% | Recommended Excitation | 5～12VDC | ||
Rated output | 2.0±0.1mV/V | Maximum Excitation | 18VDC | ||
Zero Balance | ±5%F.S | Operating Temp.Range | -20℃～+60℃ | ||
Linearity Error | ±0.02%F.S | Safe Overload | 150%F.S | ||
Repeatability Error | ±0.015%F.S | Ultimate Overload | 200% | ||
Hysteresis Error | ±0.015%F.S | Insulation Resistance | ≥2000MΩ(50VDC) | ||
Creep | 0.03%/30min | Cable length | Φ4mm×0.4m | ||
Input Resistance | 405±10Ω | Cable | 4-Wire Shielded Cable | ||
Output Resistance | 350±3Ω | Protection Class | IP65 | ||
Temp.Effect on Output | 0.03%/10℃ | Wiring code | Exc+：Red Exc-：Black | ||
Temp.Effect on Zero | 0.05%/10℃ | Sig+：Green Sig-：White | |||
